Wall-mounted desk ergo S 67 W

Product features

  • 50 cm | 19,7" elevation with flat desk top
  • Infinetely variable adjustment of table height from (ca.) 67 to 117 cm [when mounted directly above the ground]
  • Stepless inclination of table top: 0° to 90°
  • One hand lever as crank opens and locks the multi-disc brake for height- and inclination adjustment.
  • Mechanic folds together
  • Total weight balance for table top through gas spring
  • Space between feet of rack: 72 cm
  • Rack powder-coated, light-grey RAL 7035
  • Table sizes see chart below
  • Decor of plate: gray or beech décor
  • 4 adjustable screw feet, for uneven grounds

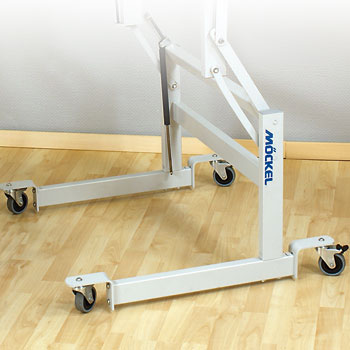

    - castors optional see »Equipment

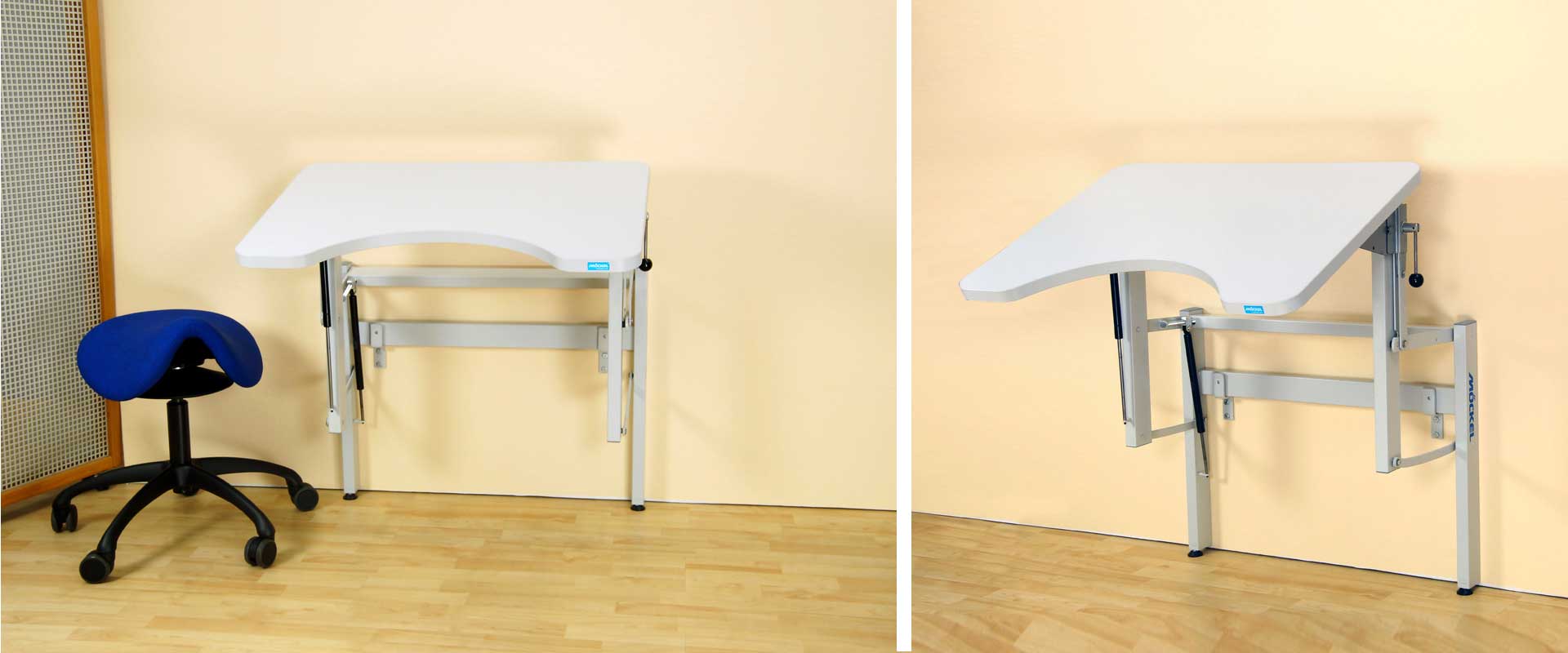

Adjustable table ergo S 67 W

Height- and inclination adjustable table
- to be fixed at any wall.

Needs a minimum of space.

Very easy changing of height and inclination.

All functons are easily adjusted with just one hand lever.

wall mounted adjustable desk

One for all

All Moeckel desks type ergo S feature one hand lever for the two functions of height- and inclination adjustment.
wall mounted adjustable desk
wall mounted adjustable desk

Selected item:

ergo M3

Optional equipment:

Stop ruleStop rule - 5mm normal height

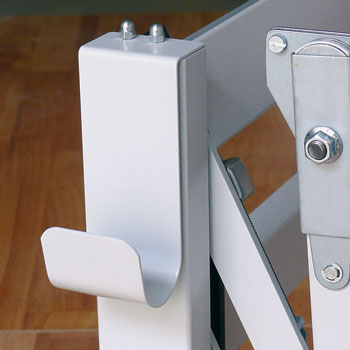

Bag holderBag holder for ergo S and P

Stop bars on 3 sidesStop bars on 3 sides
Elevation ca. 30 mm - with beveled edges
Steel topSteel top with 2 magnets

Special stop ruleSpecial stop rule
lateral guided (clamped on)

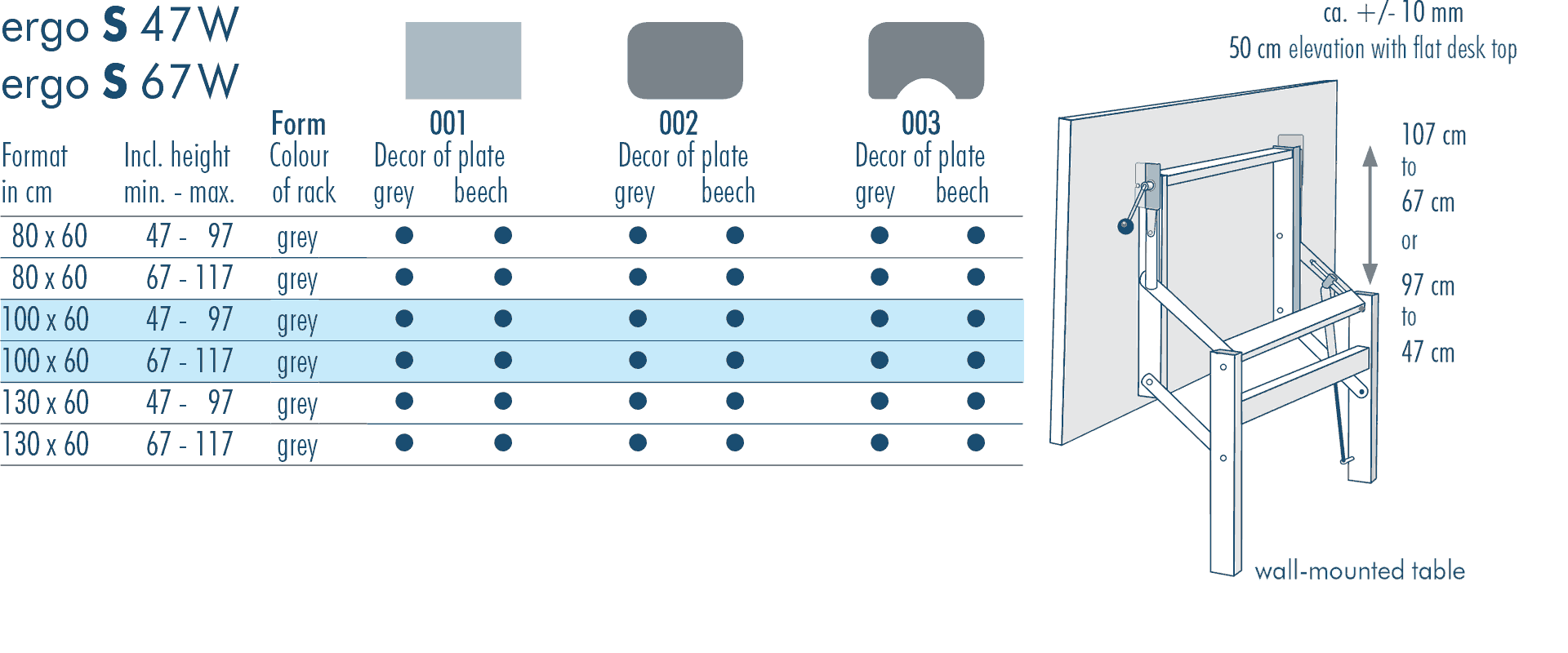

Table sizes and designs

table sizes

Service Hotline

Telephone support and advice:

+49 6408 9004 0

Mo-Fr, 09:00 - 12:00 and 14:00 - 17:00 h

Decorations are never part of deliverd items.
