Sit/stand therapy table ergo M 10 R

Product features

  • Infinitely variable table heights
    ergo M10 50 - 50 to 75 cm - 25 cm stroke
    ergo M10 68 - 68 to 112 cm - 44 cm stroke
    ergo M10 72 - 72 to 120 cm - 48 cm stroke
    (Tolerance in stroke +/- 10 mm)
  • Stepless inclining of rear plate
    from 0° - 85° with front plate allways horizontal - optional with circular cut
  • Lateral mounted plate* is fixed - alternativly right or left
    (*depending on design - C or D)
  • Quick adjustment (S-drive) one hand lever opens and locks the height adjustment optionally with quick-action-crank (K-drive) or electric powered adjustment (E-drive)
  • Height adjustment over double-chain drive - no accidental declining of desk top, smooth run with ball bearings
  • Total weight balance for table top - can be regulated* up to 60 pound, depending on size of board or hardware - easy handling with crank*
    (* not with 60 cm rack)
  • Space between feet of rack: 81 cm
  • Rack powder-coated, light-grey RAL 7035ack - lifting frame is black RAL 9005
  • Sizes see chart below
  • Decor of plate: gray or beech décor
  • 4 adjustable screw feet, for uneven grounds
    - castors optional see »Equipment

Verstile design for use in therapy

The ergo M10 R was designed to provide maximum access and always correct working height - also for wheelchair users.

A natural working position can be achieved very easily. The main part of the table top can be lifted up to 85°.

Alternating positions easy to obtain
Smooth and save all items glide up and down.

The ergo M10R is offered with three starting heights: 50 cm for persons with max. 160cm body height, 68 cm as normal height and 72 cm optional.

hoehen- und neigungsverstellbarer tisch

Multifunctional desk

Changing modes of use can be set up within seconds.
hoehen- und neigungsverstellbarer tisch
hoehen- und neigungsverstellbarer tisch

Selected item:

ergo M3

Optional equipment:

castors 4 castors for models M#
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson)
Quick-action-crankQuick-action-crank frontal (Kf) for height adaption from table front
Electric DriveElectric Drive for height adaption

extension boardSupplementary plate with circular cut for types ergo P2, M2, M10 with max. 70 cm depth of plate   #25
Steel topSteel top with 2 magnets

Special stop ruleSpecial stop rule
lateral guided (clamped on)
anti wedge brushAnti wedge brush - protects fingers from being caught between the plates of "3" models #33

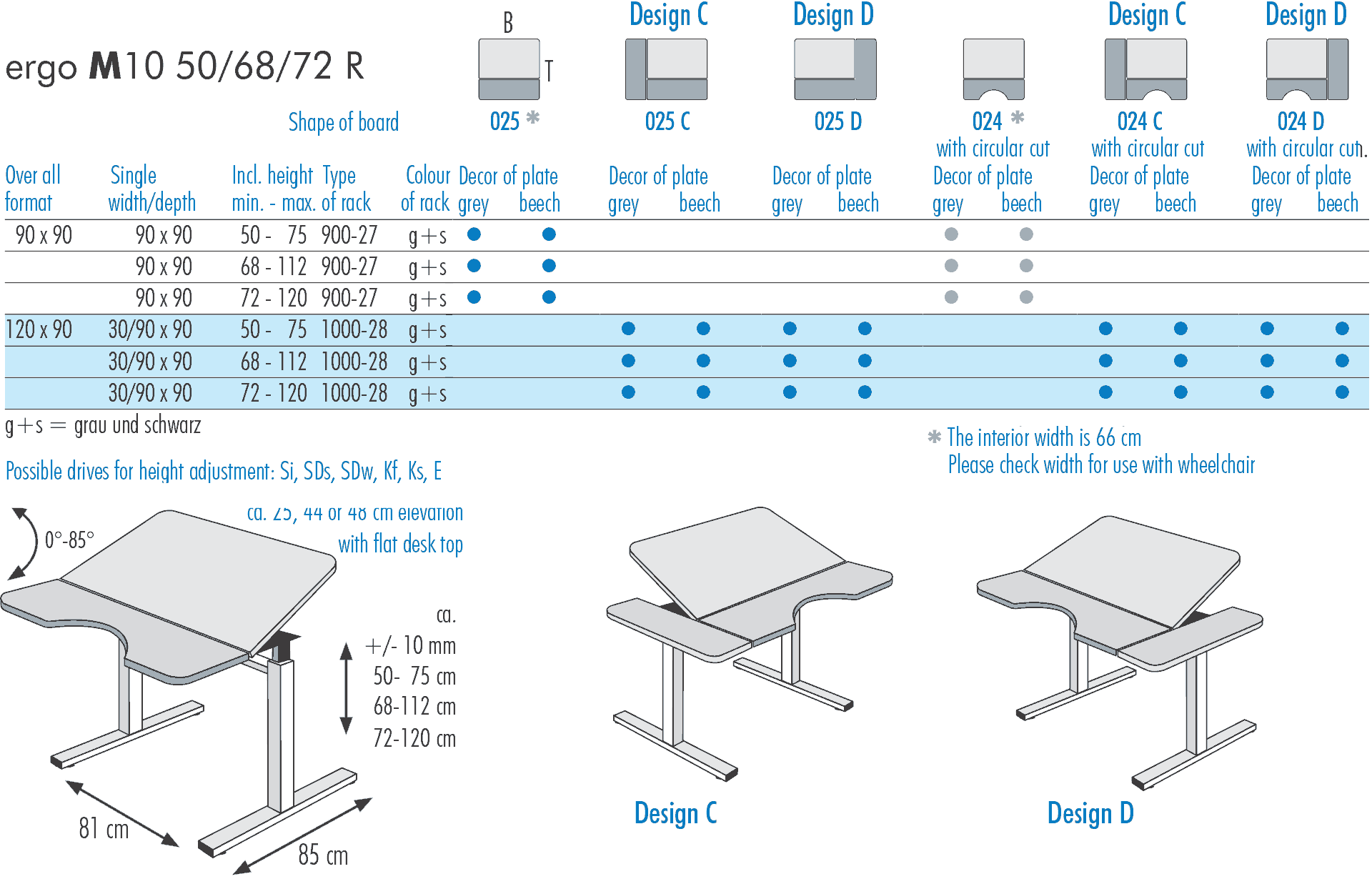

Table sizes and designs

table sizes
