ergo SZT - height and inclination adjustable

Product features

  • Infinetely variable table height from (ca.) 76 to 106 cm - 30 cm stroke
  • Inclination of table top: 0° to 85° - without grades
  • Sturdy desk-top positions - easy handling
  • One hand lever as crank opens and locks the multi-disc brake for height- and inclination adjustment.
  • Total weight balance for table top through gas spring
  • Space between feet of rack: 58 cm
  • Rack powder-coated, light-grey RAL 7035
  • Table sizes see chart below
  • Decor of plate: gray or beech décor
  • 4 adjustable screw feet, for uneven grounds - castors optional see »Equipment

Articulated lift desk with 76 cm starting height

ergo SZT is a multi-talented working or drafting table - wherever there is a demand for changing work positions or different users.

This desk gives us back some of the action our muscles and discs need.

Ideal for school, crafts, work and private use, such as hobby, creativ artwork, etc.

All functons are easily adjusted with just one hand lever.

hoehen- und neigungsverstellbarer tisch

Drafting table ergo SZT

Zeichentisch ergo SZT
Used as a drawing table the model SZT can be combined with the drawing machine LX-3 or LX-2.
hoehen- und neigungsverstellbarer tisch

Selected item:

ergo M3

Optional equipment:

castors 4 castors for models S and P
360° swiveling - with breaks
(adjustable feet omitted for technical raeson)
2 fixed wheels2 fixed wheels - lateral
plus 4 adjustable screw feet
2 fixed wheels2 fixed wheels - frontal
plus 4 adjustable screw feet
Stop ruleStop rule - 5mm normal height

Bag holderBag holder for ergo S and P

Stop bars on 3 sidesStop bars on 3 sides
Elevation ca. 30 mm - with beveled edges
Steel topSteel top with 2 magnets

Special stop ruleSpecial stop rule
lateral guided (clamped on)

Drafting equipment

Fixed aluminium tool trayFixed aluminium tool tray - on total length of board
Drafting machineDrafting machines
- in accordance to board size
Mounting extensionMounting extension for MAG/K, LX-3, LX-2 drafting machines right hand versions only)

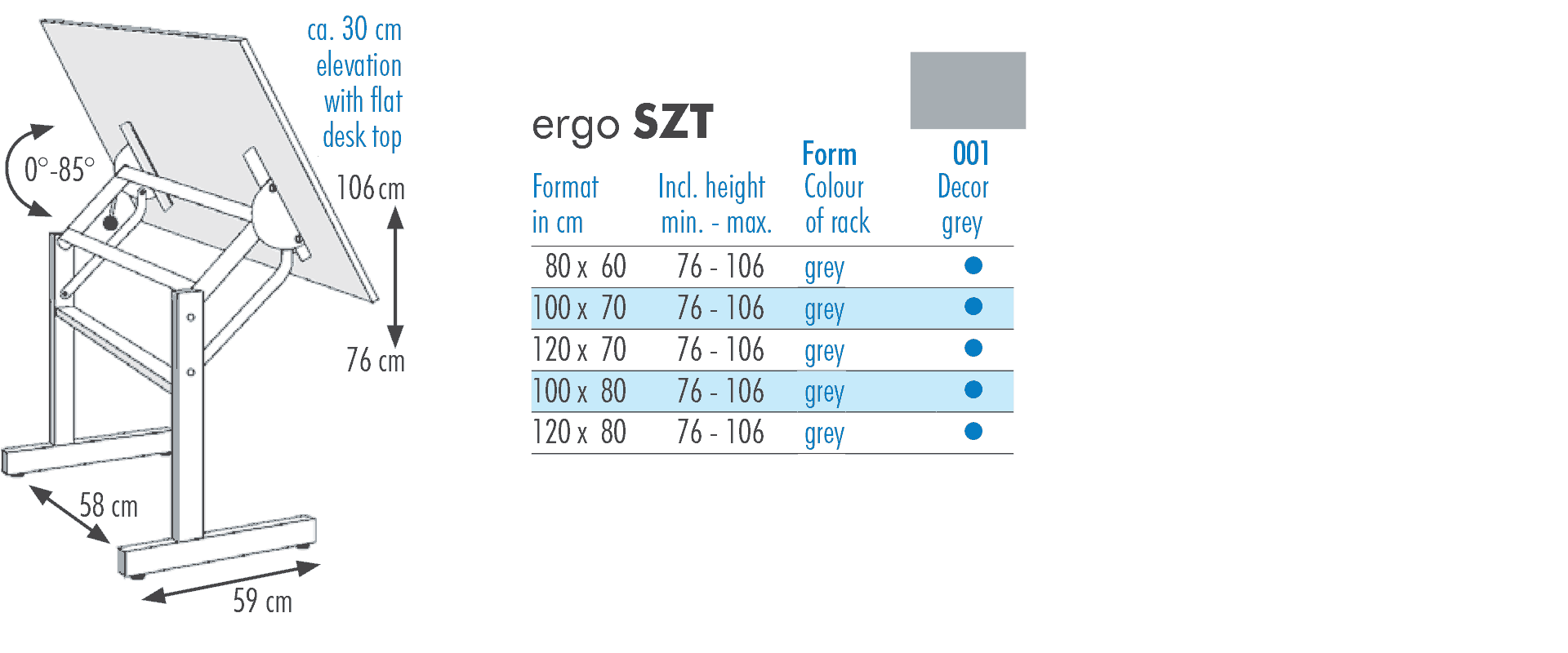

Table sizes and designs

table sizes
