Height & inclination adjustable desk ergo M4 R

Product features

  • Infinitely variable table heights
    ergo M4 54 - from ca. 54 to 79 cm - 25 cm stroke (Childrens table)
    ergo M4 72 - from ca. 72 to 116 cm - 44 cm stroke
    ergo M1 76 - from ca. 76 to 124 cm - 48 cm stroke (optional)
  • Size of plate 80 x 65 cm

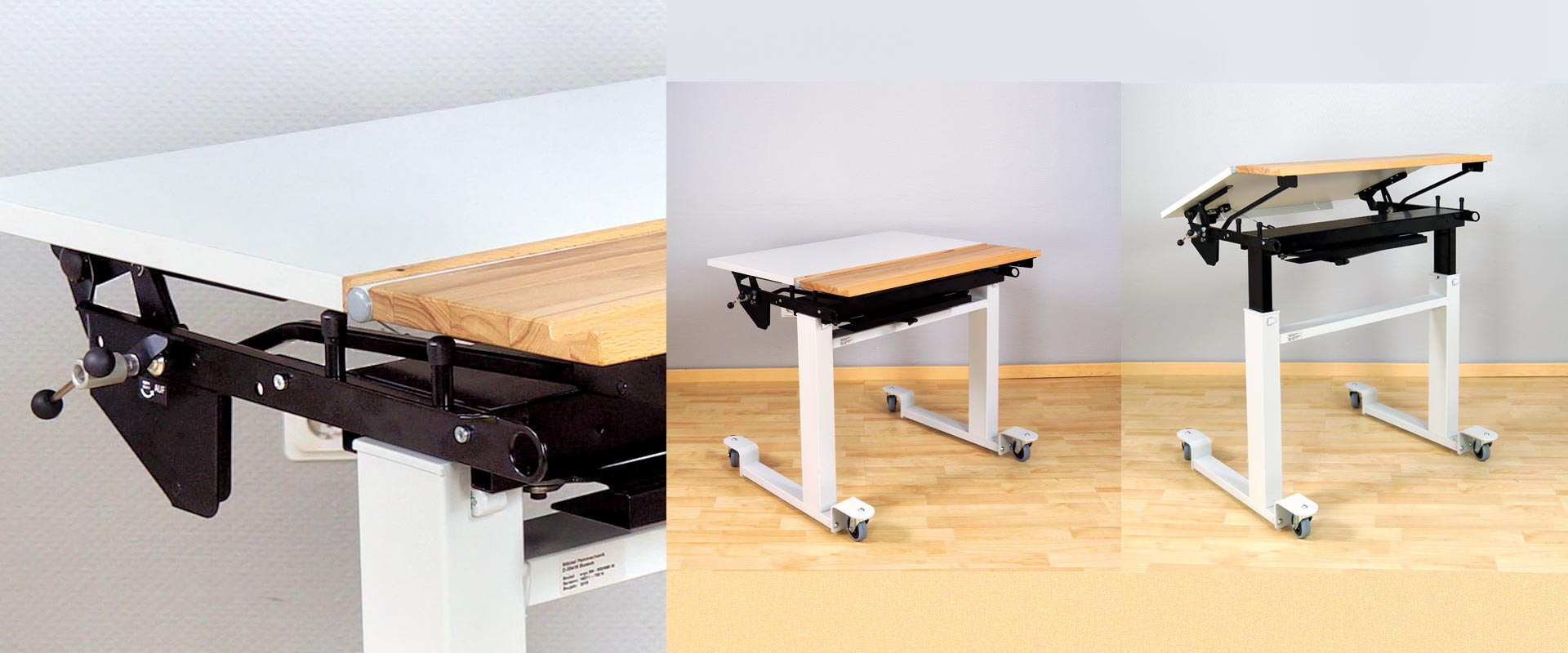

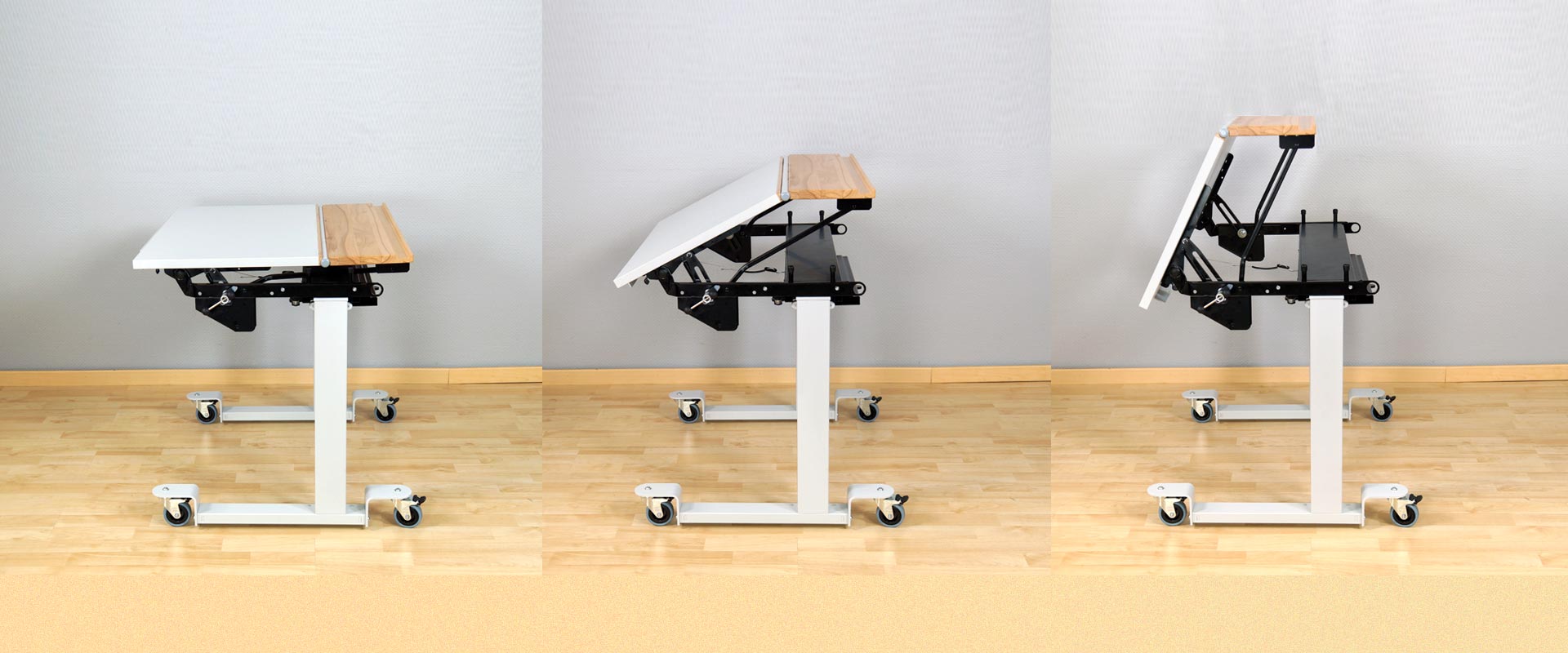

  • Stepless Inclination of desk top from 0° to 85° with couterbalanced weight. Can be moved back from any position. The rear part of the panel always stays in horizontal position at any step of inclination of the front part.
  • Quick adjustment (S) one hand lever opens and locks the height adjustment. Optionally with quick-action-crank (K) or electric powered adjustment (E).
  • Height adjustment over double-chain drive - no accidental declining of desk top, smooth run with ball bearings.
  • Space between feet of rack: 60 cm
  • Table sizes see chart below
  • Decor of plate: grey with wooden tray
  • Rack powder-coated, light grey - RAL 7035 or black. The lifting frame is always black - RAL 9005
  • 4 adjustable screw feet, for uneven grounds - castors optional - see »Equipment

Height and inclination adjustable studio desk

Ideal for quick changing working heights and inclination - always with horizontal panel for your utensils.

For working situations that demand alternating heights and positions.
The easy handling promts you to change your position whenever you like - your disks and muscular system profit from this action.

Smooth and save all items glide up and down. ergo M4 is offered with three starting heights: 54, 72 or 76 cm.

hoehen- und neigungsverstellbarer tisch

Studio desk and
school desk ergo M4

for creative moments.
hoehen- und neigungsverstellbarer tisch
(Castors are optional equipment)

Selected item:

ergo M3

Optional equipment:

castors 4 castors for models M
360° swiveling - with breaks
(adjustable screw feet omitted for technical raeson)
2 fixed wheels2 fixed wheels - lateral
plus 4 adjustable screw feet
Stop ruleStop rule - 5mm normal height

Quick-action-crankQuick-action-crank (Ks) for height adaption from the side

Quick-action-crankQuick-action-crank frontal (Kf) for height adaption from table front
Electric DriveElectric Drive for height adaption



farben-moeckel-tische"Optional Colours for Moeckel desks (RAL*-Colour scheme)

2001 Red orange · 3000 Flame red · 3003 Ruby red · 3004 Purpel red** · 3020 Traffic red · 5010 Gentian blue · 5012 Light blue · 5015 Sky blue · 5023 Distant blue · 6024 Traffic green · 6029 Mint green · 7016 Anthracit grey · 7021 Black grey · 7024 Graphite grey · 7043 Traffic grey B · 9006 White aluminium · 9016 Traffic white

*Please look up the actual Colour on a RAL-Colour chart.

7035 Light grey is the standard colour free of extra charge. Black is can be chosen as standard colour at some models (M). The lifting frame, the moving part of the lift, is always black.

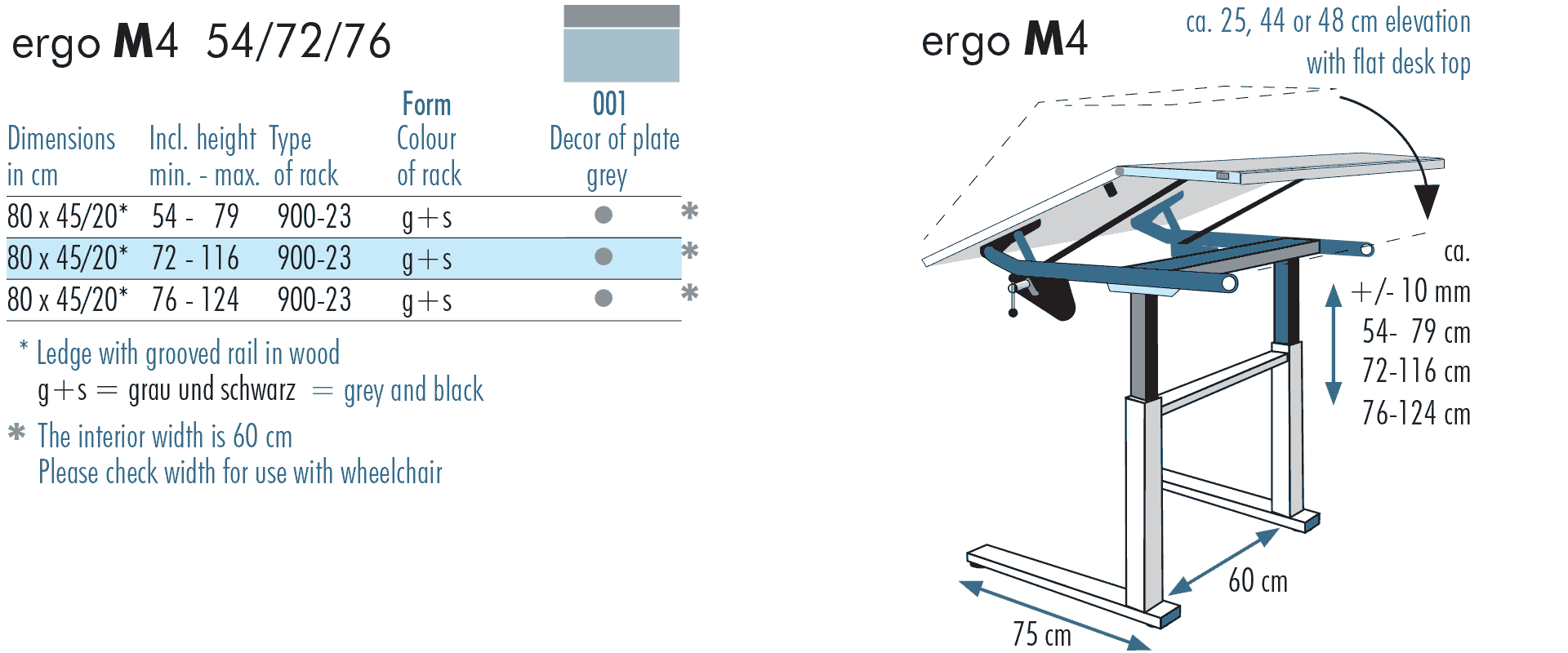

Table sizes and designs

table sizes
